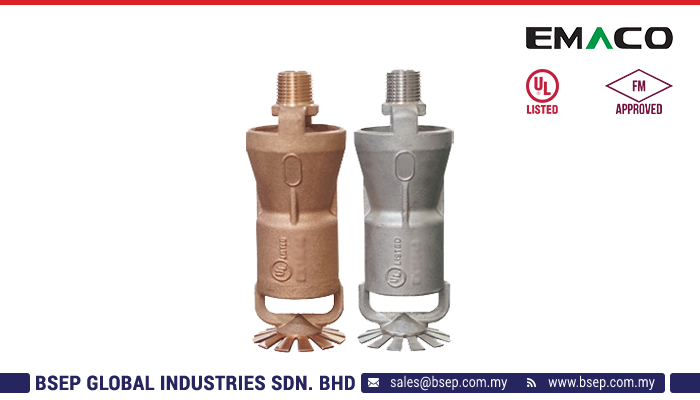

07. BSEP_Description_Image_FOAM WATER SPRINKLER – PENDENT TYPE UL+FM

Foam Water Sprinkler is used in the deluge foam system to protect the risk where foam is required to be applied from overhead sprinklers. It protects the loading and unloading area in the event of a spill fire with low expansion foam systems. These are useful in other wide applications i.e. aircraft hangers, warehousing.

MODEL NUMBER APPROVAL MATERIAL WORKING PRESSURE STANDARD COVERAGE K-FACTOR
E1 UL/FM Stainless Steel/ 175psi (12bar) 100 sq. ft. 42
EH UL/FM Bronze



AVAILABILITY

Mounting: Pendent Open and air aspirating type

End connection: ½” BSPT (½” NPT optional)
