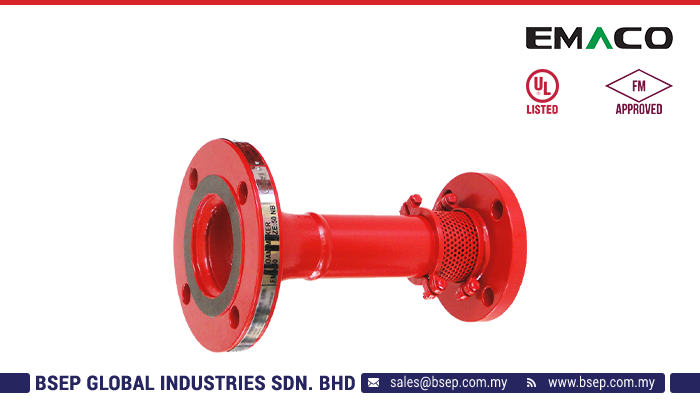

DescriptionVariantsResourcesDescription Foam Maker is an air aspirating foam generator connected to the foam pourer to deliver the aspirated foam gently into the tank seal area. Foam makers are defined by NFPA 11 as type II discharge outlets for delivering the low expansion aspirated foam to the seal. Variants MODEL APPROVAL MATERIAL WORKING PRESSURE INLET X OUTLET SIZE E0303- M50 UL/FM Carbon-Steel 40psi (3bar) min. 100psi (7bar) max. 2’’ x 3’’ (50mm x 80mm) E0303-M65 UL/FM Carbon-Steel 2.5’’ x 4’’ (65mm x 100mm) E0303- MS50 UL/FM Stainless Steel 2’’ x 3’’ (50mm x 80mm) E0303-MS65 UL/FM Stainless Steel 2.5’’ x 4’’ (65mm x 100mm) Connection flange: ANSI B16.5 Class 150 Finishing: Red Epoxy Coated or Natural Finish Resources Coming Soon Related Products HFC227 EXTINGUISHER WET CHEMICAL EXTINGUISHER AUTOMATIC ABC DRY POWDER EXTINGUISHER WATER EXTINGUISHER FOAM EXTINGUISHER CARBON DIOXIDE EXTINGUISHER ABC DRY POWDER EXTINGUISHER
