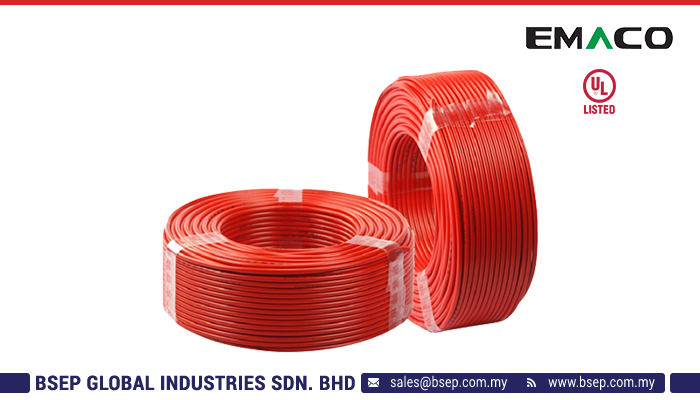

01. BSEP_Description_Image_Fire Alarm Circuit Cable-UL

Fire alarm riser cables from EMACO are suitable to use in vertical-runs in signaling & fire alarm systems. It works at high-temperature levels. Our cable was constructed with FR-PVC insulation and outer jacket with aluminum and PE tape shielding meeting UL 1666 specifications. This cable complies with VW -1 Flame Test requirements in ANSI/UL 1581 and ANSI/UL 1666 for flame Propagation Height of Electrical and Optical – Fiber Cables Installed Vertically in Shafts.

TYPE APPROVAL OPERATING VOLTAGE  CONDUCTOR
FPL and FPLR UL Listed 300 V RMS Solid bare copper



ELECTRICAL RESISTANCE OF CONDUCTOR

Item Dimension of Conductor Maximum DC Resistance (Ω/km 20°C) According to IEC 60228-2004 Brown Red
2Cx1.5mm²  1.38mm ≤12.1 11.5 11.5
2Cx2.5mm²  1.78mm ≤7.41 6.9 6.9

Coming Soon
